Type
Wall Lights

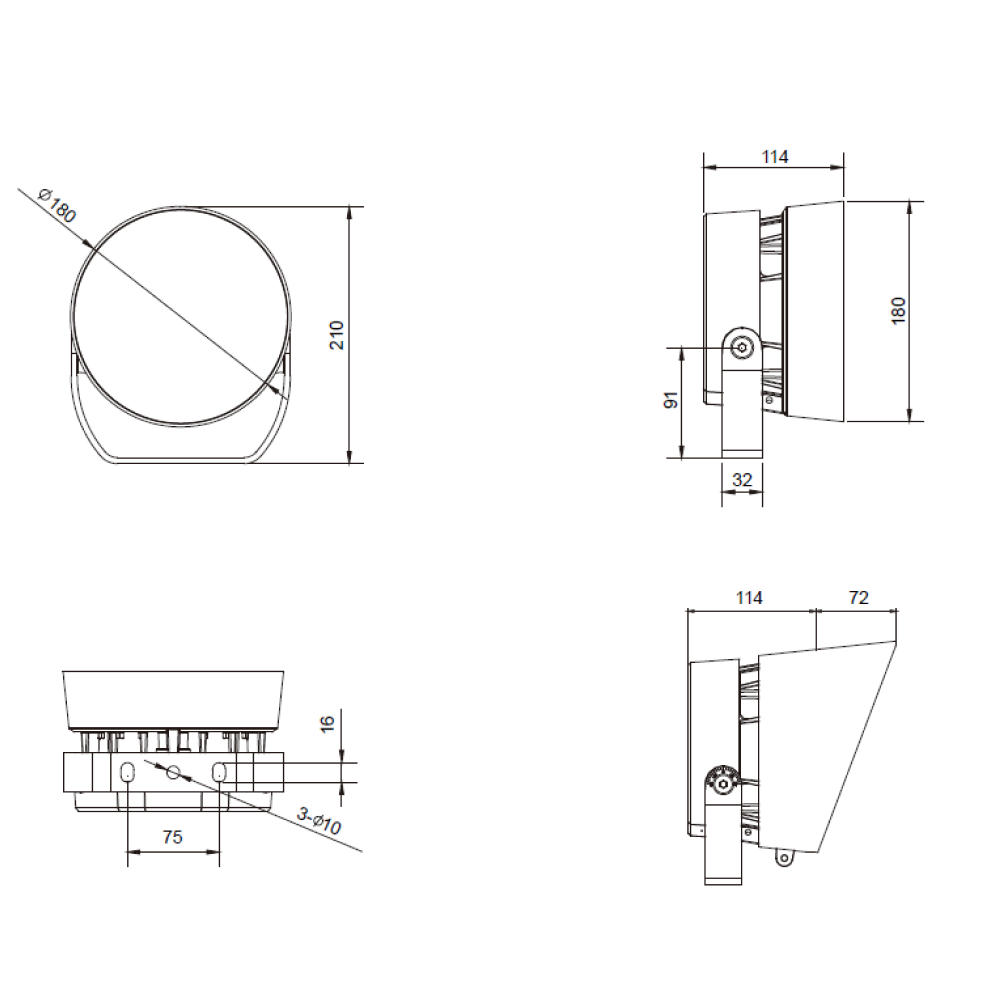

Size
Light: Dia.: 180 H: 180 mm
Base: W: 75 H: 16 mm
Overall Height: 210 mm
Base Height: 91 mm
Base Width: 32 mm
Overall Length: 186 mm
Mounting Holes: 3-Dia.: 10 mm
Color
Refer to images for color finishes
Selection
Origin
China
Environment
Indoor, Outdoor
Project
Residential, Hospitality, Contract
Weather Resistance
IP66 Weather resistance finish
Additional Information
Voltage: AC100-305V 50/60Hz
Minimum Order Quantity
1
Note
Beam Angle:
M12: 2.5°
E12: 8°, 12°, 20°, 30°, 45°, 60°, 10×60°
F12: 9°, 15°, 20°, 30°, 45°, 15×60°
M9: 2.5°
E9: 8°, 12°, 20°, 30°, 45°, 60°, 15×60°
F9: 9° 15°, 20°, 30°, 45°, 15×60°
Led Quantity:
M12-E12-F12: 12pcs
M9-E9-F9: 9pcs
Ambient Temperature:
-25°C – 50°C
Ambient Humidity:
10°C – 90°C
