Type
Wall Lights

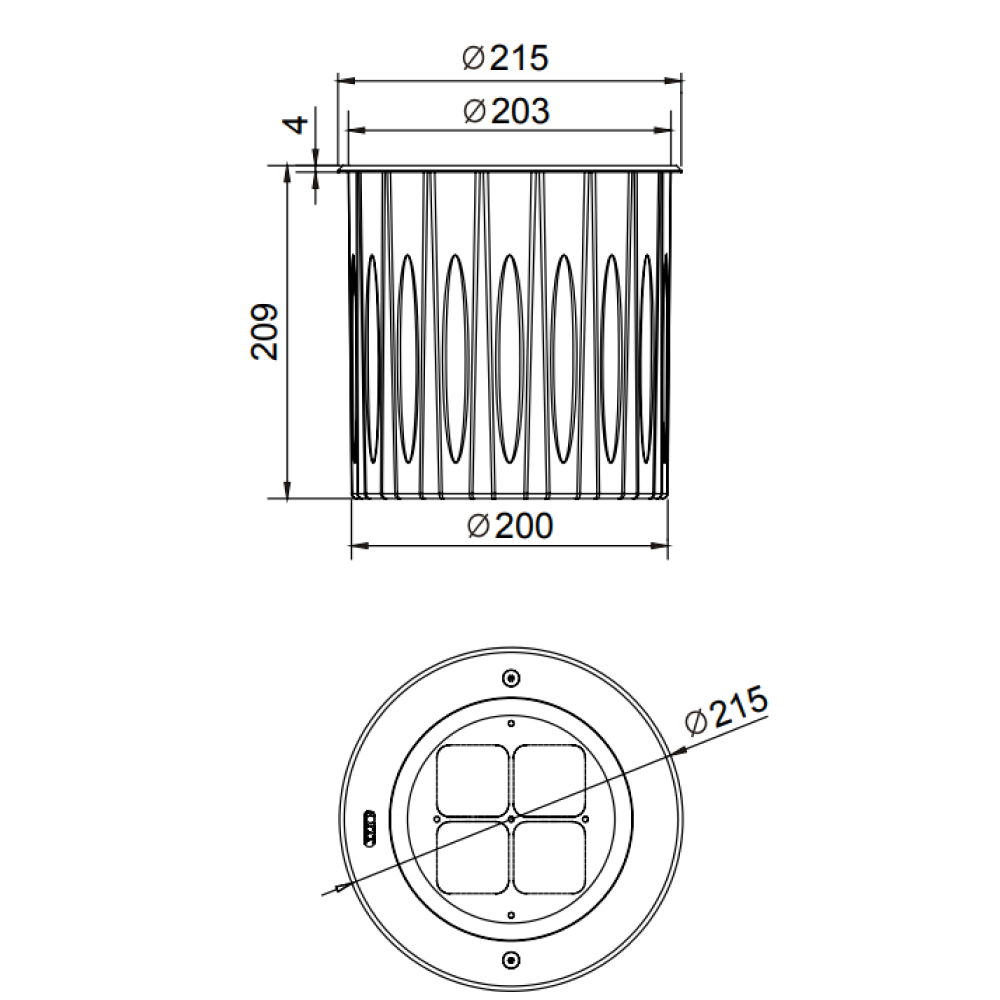

Size
Light: Dia.: 215 H: 209 mm
Cutout: Dia.: 203 mm
Inner Light: Dia.: 200 mm
Flange Thickness: 4 mm
Color
Refer to images for color finishes
Selection
Origin
China
Primary Material
Die-cast Aluminum body.
Secondary Material
Temper glass diffuser
Environment
Indoor, Outdoor
Project
Residential, Hospitality, Contract
Additional Information
Voltage: AC100–305V 50/60Hz
Minimum Order Quantity
1
Note
Beam Angle:
CM: 2°
CE: 4.5°, 8°, 12°, 20°, 30°, 40°, 60°, 10×70°, 5×20°
CF: 15°, 20°, 30°, 15×60°
CC: 8°, 12.5°, 20°, 30°, 60°, 15×30°, 10×60°
CA: 12°, 15°, 24°, 20×30°
Led quantity: 4pcs, 16pcs, 36pcs
